TreeMaster MS
SHEAR PERFECTION
THE CONCEPT

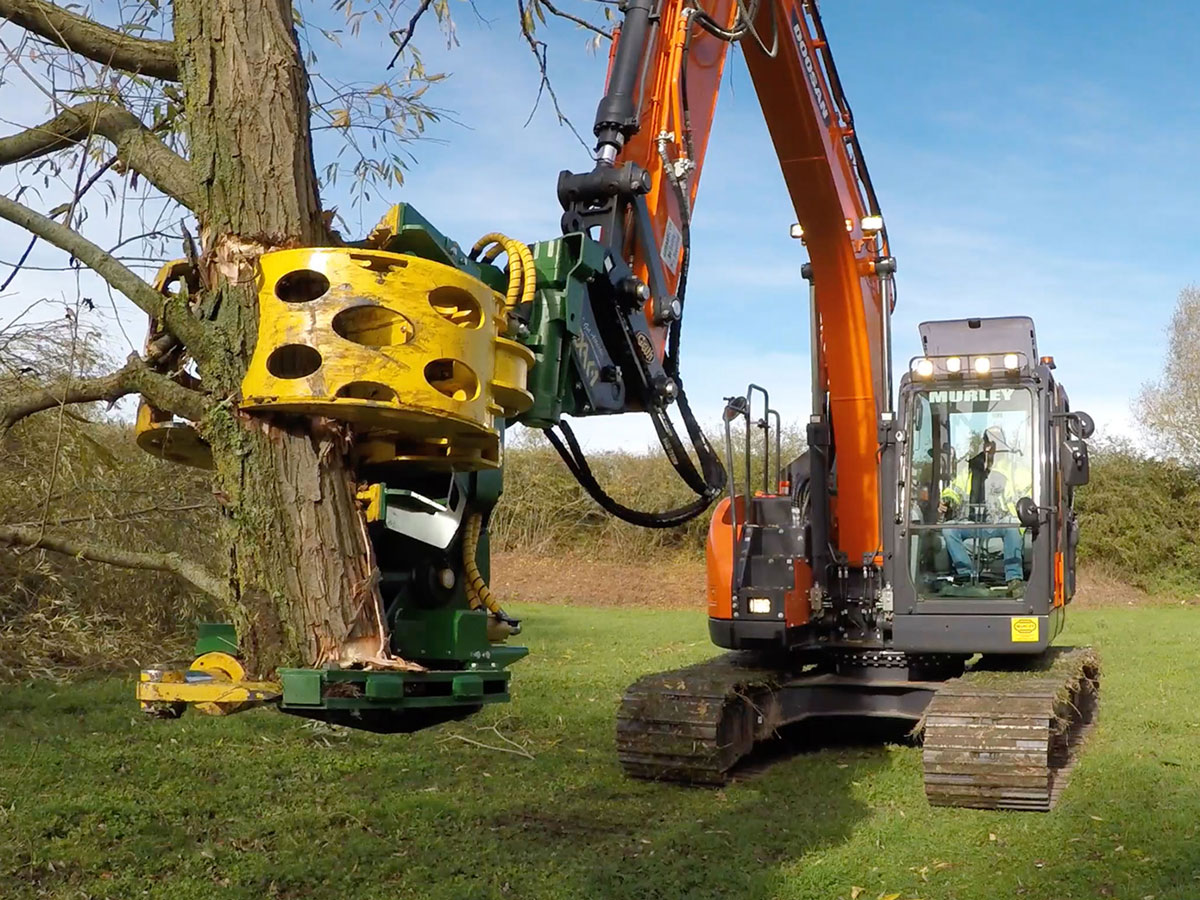

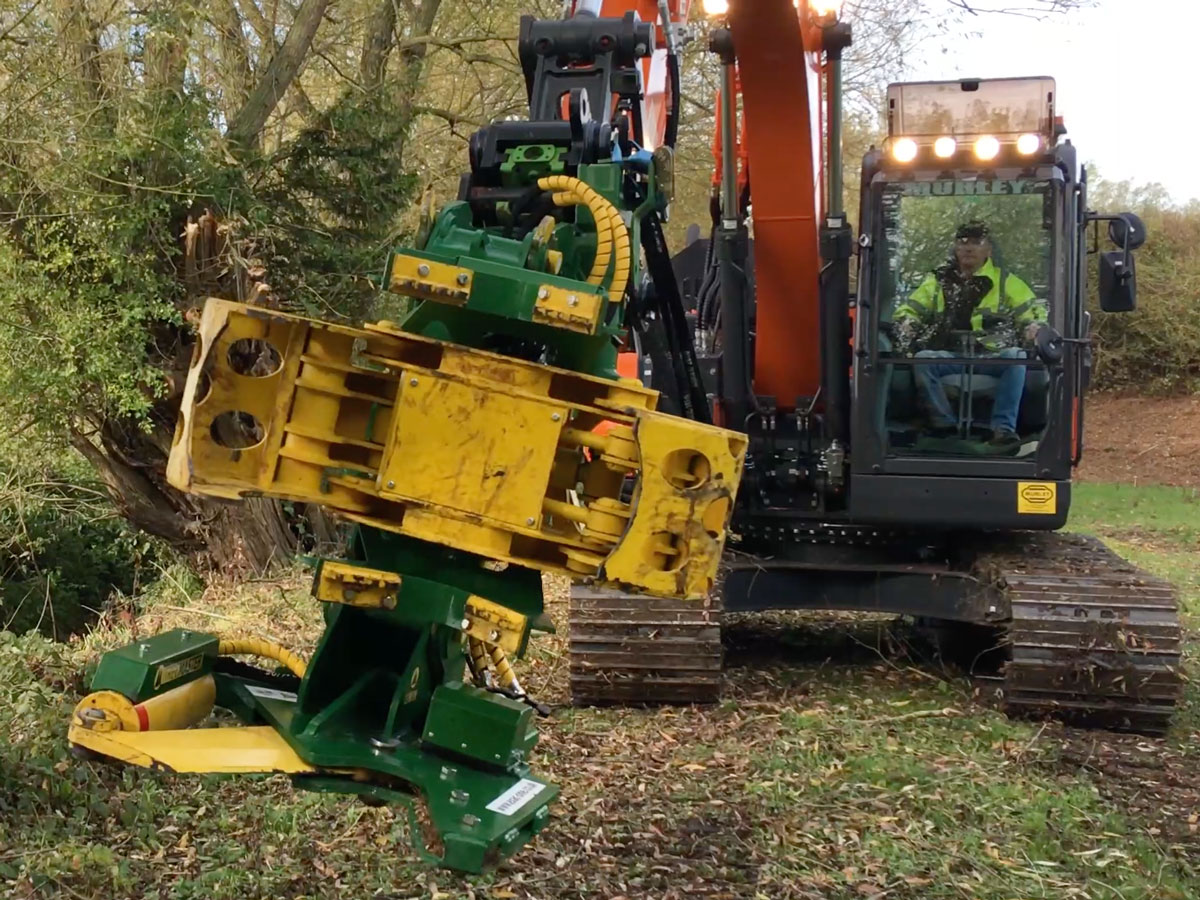

Treemaster MS has a unique modular design that allows you to adapt the attachment to your precise cutting needs. Comprising three individual modules, it means the different elements can be attached or dispensed with as and when required. So, when there is no need to hold the timber during cutting, the cutting module can be connected directly to the rotator / mounting module. This provides enhanced agility and precision when felling, pruning, processing and handling timber and for cutting up waste timber. If holding the timber is required, the grab module can be fitted quickly and easily thanks to Treemaster’s ingenious ‘semi quick coupling’ system. One convenient lever movement is all that’s required to connect hoses simply and under pressure, enabling safe configuration change in just a matter of minutes.
MODELS & TECH SPEC
| Model | Carrier Weight (t) | Weight (kg) | Oil Flow (l/m) | Oil Pressure (bar) | Dimensions H x W x D (mm) | Max Cut Diameter(mm) |
|---|---|---|---|---|---|---|
| MS300 Fully Configured | 7 – 14 | 850 | 110 – 250 | 210 – 230 | 1530 x 1470 x 1530 | 300 |
| Rotator Module | 7 – 14 | 231 | 110 – 250 | 210 – 230 | n/a | n/a |
| Grab Module | 7 – 14 | 245 | 70 – 90 | 210 – 230 | n/a | n/a |
| Shear Module | 7 – 14 | 258 | 70 – 90 | 210 – 230 | n/a | n/a |
| Grab Shear Module BC27 | 7 – 14 | 470 | 70 – 90 | 210 – 230 | n/a | 250 |
| Flail Mower Module TE120DP | 7 – 14 | 270 | 70 | 210 – 230 | n/a | 50 @ 1200 wide |
| Branch Trimmer Module BT190 | 7 – 14 | 295 | 70 – 90 | 210 – 230 | n/a | 100 @ 1880 wide |
| Log Grab PTO400S | 7 – 14 | 315 | 70 – 90 | 210 – 230 | max 1880 wide | n/a |
